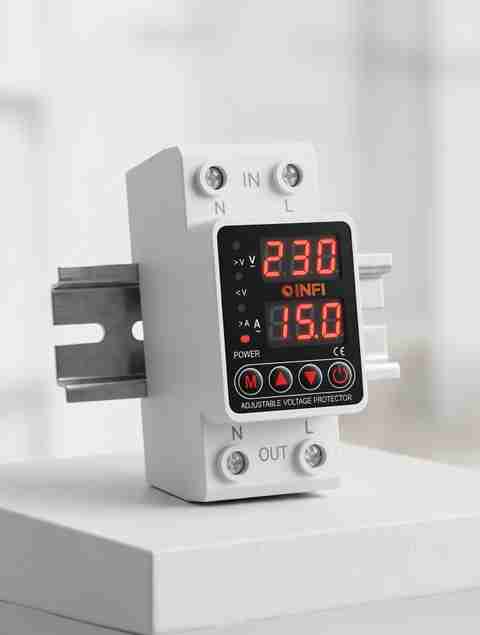

Under Voltage/ Overvoltage / Overcurrent Protector 230V 63A Voltage Current Protector
INFI Under Voltage/ Overvoltage / Overcurrent Protector 230V 63A ...more
Big Billion Days Price
60%
1,999
₹796
Shop with peace of mind
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In The Box
Sales Package
1 Voltage Current Protector
Performance Features
Spike Suppressor
No
Output Voltage Correction
Yes
Trip Delay
Yes
Automatic Reset
Yes
Manual Reset
Yes
Audio Alarm
No
Circuit Breaker
Yes
General
Brand
INFI
Type
Voltage Current Protector
Used For
Mainline
Phase
1
Generator Compatibility
Yes
Color
White
Model ID
Under Voltage/ Overvoltage / Overcurrent Protector 230V 63A
Model Name
INFI 63A 230V DIN Rail Digital Voltage & Current Protection Relay with Dual LED Display (Auto Reconnect)
Supported Appliance Capacity
NA
Additional Features
Insulation
Yes
Key Features
Over / Under Voltage Protection, Over Current Protection, Time Delay On Delay, Triple Protection: Safeguards connected appliances against over-voltage
Operational Conditions
Minimum Operating Temperature (° C) + Maximum Operating Temperature (° C)
0 - 100 degree C
Minimum Humidity (%) + Maximum Humidity (%)
25 - 79 %
Dimensions
Weight
0.18 kg
Body
Material
PLASTIC
Display Type
LED
Indicator Type
Display
Surge Indicator
Yes
Master Switch
Yes
Mount Type
35mm DIN RAIL
Other Body Features
Volt Meter
Power Features
Maximum Power Handling Capacity (W)
14000 W
Maximum Spike Current (A)
63 A
Minimum Input Power (V)
90 V
Maximum Input Power (V)
300 V
Nominal Input Power (V)
230
Minimum Output Power (V)
90 V
Maximum Output Power (V)
300 V
Accuracy (%)
.01 %
Power Rating (VA)
14000 VA
Minimum Frequency (Hz)
35 Hz
Maximum Frequency (Hz)
50 Hz
Safety Features
Under Volt Protection
Yes
Over Volt Protection
Yes
Phase Reversal Protection
Yes
Surge Protection
No
Overload Protection
Yes
Safety Features
Yes, Fuse Protection
See more
Protect your valuable electrical appliances and equipment from sudden voltage spikes with the Voltage Current Protector (VCP). Designed for reliable electrical safety, this device continuously monitors the incoming power supply and automatically disconnects the load whenever the voltage exceeds the safe operating limit. Once the voltage returns to normal, the protector restores power automatically, ensuring uninterrupted and worry-free operation.
See more
Warranty Summary
Against Manufacturing Defects
Covered in Warranty
Manufacturing Defects
Not Covered in Warranty
Burn or Physical Damage
Warranty Service Type
Service Center walk in
Generic Name
Voltage Stabilizers
Country of Origin
India
Name and address of the Manufacturer
SATV SOLAR, Lucknow
Name and address of the Packer
SATV SOLAR, Lucknow
